Articulating Monitor Arm with Desk Clamp
Overview
The EZCLAMP is a single-arm articulating monitor mount built on a durable all-steel structure, supporting displays from 17” to 32” weighing up to 9 kg (19.8 lbs). A freely adjustable arm delivers smooth tilt, swivel, and rotation so any monitor can be positioned precisely — flat or in portrait mode. Installation is straightforward with both a desk clamp and a grommet base included, fitting virtually any work surface. A detachable quick-release VESA plate simplifies monitor attachment, and integrated cable clips keep the workspace tidy. VESA 75×75 and 100×100 compatible.
Key Features
Feature Detail

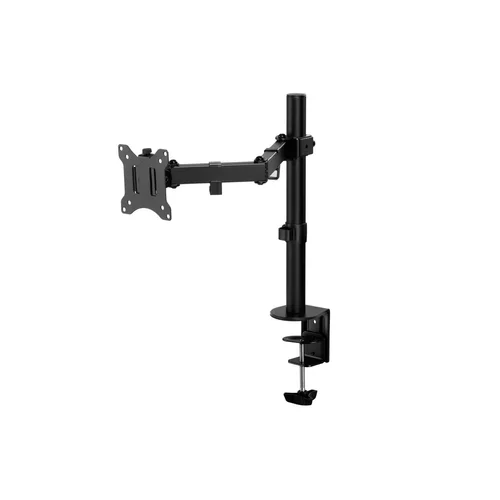

Full Articulation
The arm delivers a broad range of motion to accommodate different workstyles and ergonomic needs. Swivel up to ±90° to share your screen or angle toward a second seat, tilt ±45° to eliminate glare from overhead lighting, and rotate a full 180° to switch between landscape and portrait orientation. Portrait mode is particularly useful for coding, reading long documents, or working in vertically-oriented applications. All adjustments are smooth and hold position firmly once set.

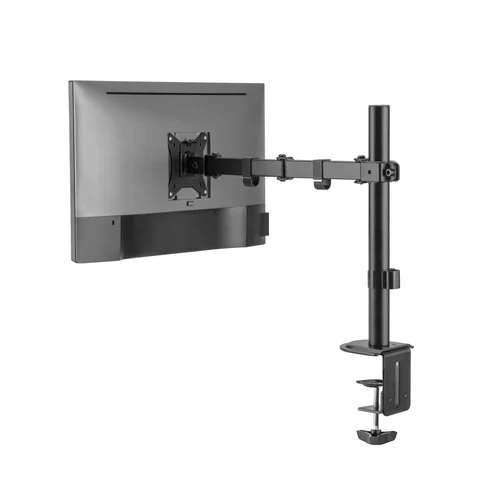

Ergonomics
When a monitor is at the wrong height and below natural eye level it forces the head forward and down for hours at a time — a leading cause of neck and upper back strain in desk-based work. The mount raises the monitor to a comfortable viewing height and holds it there, encouraging a more upright posture throughout the day. Tilt adjustment lets you angle the screen to match your exact seated position and eliminate glare without shifting your chair. Small adjustments to monitor height and angle add up to a meaningfully more comfortable workday over time.
Quick-Release VESA Plate
The included VESA compatible quick-release plate locks securely onto the arm and detaches with a single motion — no tools, no loose hardware. The plate uses a thumbscrew mechanism that holds your monitor firmly during use but releases instantly when you need to move it. That makes it a practical solution for shared workstations, multi-monitor configurations, or any setup where screens need to relocate frequently. It also simplifies the process of swapping monitors entirely — detach, swap, and reattach without having to readjust the arm. The plate is designed to work without interfering with the arm’s cable routing, so cables can be unplugged and kept nearby during a swap and reconnected immediately on reattachment.
Clamp & Grommet Installation
Both mounting bases ship in the box so the right option is always at hand. The desk clamp grips surfaces from 10 to 85 mm thick and requires no drilling — ideal for standard desks, thick work surfaces, and sit-stand frames. The grommet base threads through an existing desk hole (10–40 mm surface thickness) for a cleaner, permanent installation. Either base accepts the same pole, so switching between them is simple if the workspace changes.
Specifications
| Parameter | Value |
|---|---|
| Monitor Size Range | 17” – 32” |
| Supported Weight — Flat Screen | Up to 9 kg (19.8 lbs) |
| Supported Weight — Curved Screen | — |
| VESA Compatibility | 75×75, 100×100 mm |
| Material | Steel, Plastic |
| Colour | Black |
| Swivel | 90° Left / 90° Right |
| Tilt | 45° Up / 45° Down |
| Rotation | 360° |
| Arm Full Extension — Forward | 376 mm (14.8”) |
| Arm Full Extension — Height | 407 mm (16”) pole height |
| Assembled Weight | — |
| Estimated Time to Assemble — Not Experienced | — |
| Estimated Time to Assemble — Experienced | — |
| Clamp Installation | |
| Compatible Surface Thickness | 10 – 85 mm (0.39” – 3.3”) |
| Clamp Width | — |
| Grommet Installation | |
| Compatible Surface Thickness | 10 – 40 mm (0.39” – 1.6”) |
| Compatible Hole Dimensions | — |
| Box Weight | — |
| Box Dimensions | 116 × 484 × 561 mm (4.6” × 19.1” × 22.1”) |
| UNSPSC | 43212002 |
