Dual Monitor Arm
Overview
The EZHYDRA2 is a dual articulating monitor arm built for two-screen setups where reliable, consistent performance matters. Each arm uses an internal spring mechanism to counterbalance your monitor’s weight independently, holding both displays in position at whatever height or angle you set — no drift, no readjusting throughout the day. Both a desk clamp and grommet base are included in the box, covering the two most common installation scenarios without any additional purchases. Compatible with flat and curved monitors up to 27″ and 8 kg per screen.
Key Features
- Clamp — On Side of Desk
- Grommet — Through a Hole in Desk Top
Feature Detail
Mechanical spring arm
A mechanical spring arm uses a precisely calibrated internal coil spring to counterbalance the weight of your monitor, keeping it locked in position at whatever height or angle you choose. Once set to match your display’s weight, the spring tension holds firm — providing reliable, consistent support throughout the day. Adjusting your monitor is straightforward: apply gentle pressure in any direction and the arm moves smoothly, then holds its new position without any tools or knobs. It’s a proven, durable mechanism built for everyday dependability, making it the ideal solution for monitor setups where your screen stays in one comfortable position for extended periods.

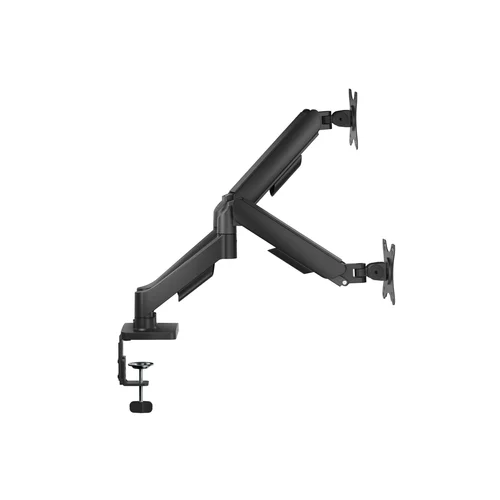

Full Articulation
Each arm delivers a broad range of motion to accommodate different workstyles and ergonomic needs. Swivel up to ±90° to share your screen or angle toward a second seat, tilt ±90° to eliminate glare from overhead lighting, and rotate a full 360° to switch between landscape and portrait orientation. Both arms adjust independently, so each display can be positioned to exactly the right height and angle for its purpose — whether that’s a primary work monitor and a reference screen, or two displays at matching heights for side-by-side work.
Two mounting options
This mount ships with both a desk clamp and a grommet base included — no choosing at checkout, no separate accessory purchases. The desk clamp accommodates surfaces from 10 to 80 mm thick and installs without any modification to your desk, making it the straightforward choice for most setups. The grommet base routes through an existing desk hole, eliminating the clamp profile entirely for a flush, low-profile installation that keeps the focus on the monitors rather than the mount. Having both options in the box means the right fit for your desk is already accounted for, regardless of your workspace configuration.
Specifications
| Parameter | Value |
|---|---|
| Monitor Size Range | 17″ – 27″ |
| Supported Weight — Flat Screen | 2 kg – 8 kg (4.4 – 17.6 lbs) |
| Supported Weight — Curved Screen | 2 kg – 8 kg (4.4 – 17.6 lbs) |
| VESA Compatibility | 100×100 / 75×75 mm |
| Material | Plastic and Steel |
| Colour | Matte Black |
| Swivel | +90° (Right) and −90° (Left) |
| Tilt | +90° (Up) and −90° (Down) |
| Rotation | 360° |
| Arm Full Extension — Forward | 506 mm (19.9″) |
| Arm Full Extension — Height | 415 mm (16.3″) |
| Assembled Weight | — |
| Estimated Time to Assemble — Not Experienced | — |
| Estimated Time to Assemble — Experienced | — |
| Clamp Installation | |
| Compatible Surface Thickness | 10 – 80 mm (0.39″ – 3.1″) |
| Clamp Width | — |
| Grommet Installation | |
| Compatible Surface Thickness | 10 – 48 mm (0.39″ – 1.9″) |
| Compatible Hole Dimensions | — |
| Box Weight | — |
| Box Dimensions | 948 × 109 × 564 mm (37.3″ × 4.3″ × 22.2″) |
| UNSPSC | 43212002 |
Included in the Box
Warranty and Parts
Downloads
