Monitor Wall Mount with Hydralift Pneumatic Arm
Overview
The HYDRA1HDGBW is a single-screen wall mount built around a gas hydraulic arm that delivers effortless, one-finger repositioning for monitors up to 49″ and 20 kg. The sealed nitrogen gas cylinder counterbalances your display with no drift and no re-tensioning required — set it once and it stays. Wall mounting eliminates desk clutter entirely and provides a stable, permanent installation suited to any workspace. A quick-release VESA plate makes detaching and reattaching your monitor tool-free, while integrated cable management keeps the setup clean from wall to screen. Compatible with flat and curved monitors using 75×75 or 100×100 VESA patterns.
Key Features
Feature Detail
Gas Hydraulic Arm
A gas hydraulic arm uses a sealed nitrogen gas cylinder as a precision counterbalance — the same core technology found in medical examination tables, aerospace hatches, and premium automotive hoods. The result is one-finger repositioning with virtually no resistance: raise, lower, tilt, or swing your monitor and it holds exactly where you leave it. Once set up for your display, the cylinder requires zero maintenance — no re-tensioning, no adjustments, no change in feel over time. It’s the right choice for users who reposition frequently, share a workstation, or simply want a premium adjustment experience that’s completely effortless.
Quick-Release Plate (with thumbscrew)
The included VESA compatible quick-release plate locks securely onto the arm and detaches with a single motion — no tools, no loose hardware. The plate uses a thumbscrew mechanism that holds your monitor during use but releases when you need to move it without tools. That makes it a practical solution for shared workstations, multi-monitor configurations, or any setup where screens need to relocate frequently. It also simplifies the process of swapping monitors entirely — detach, swap, and reattach without having to readjust the arm. The plate is designed to work without interfering with the arm's cable routing, so cables can be unplugged and kept nearby during a swap and reconnected immediately on reattachment.

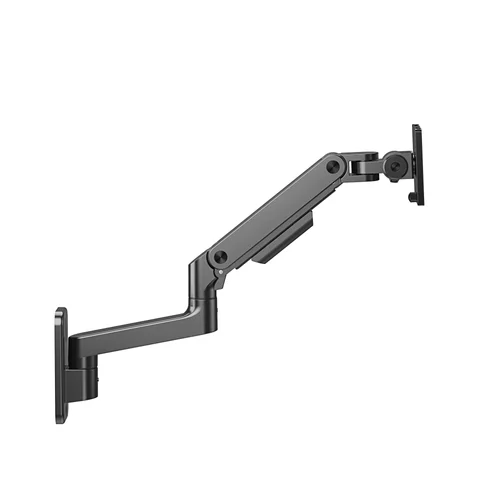

Full Articulation
The arm delivers a broad range of motion to accommodate different workstyles and ergonomic needs. Swivel up to ±90° to share your screen or angle toward a second seat, tilt from +50° to −20° to eliminate glare from overhead lighting, and rotate ±180° to switch between landscape and portrait orientation. Portrait mode is particularly useful for coding, reading long documents, or working in vertically-oriented applications. All adjustments are smooth and hold position firmly once set, with no drift throughout the workday.

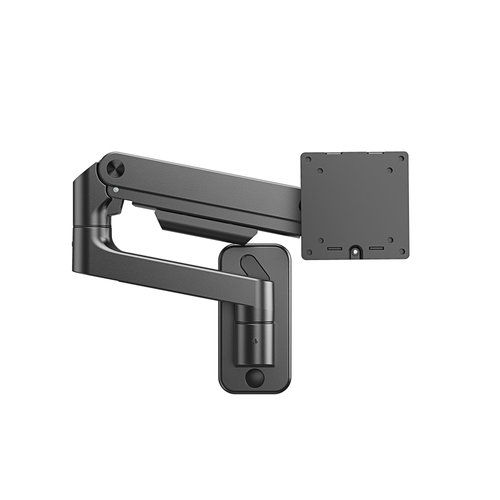

Cable Management
Built-in cable routing channels run the length of the arm, keeping display cables organized and out of sight from wall to screen. This eliminates the dangling cables that typically follow a monitor arm through its range of motion, maintaining a clean desk aesthetic regardless of how the arm is positioned. Cables are secured within the arm structure rather than clipped externally, so they move with the arm without bunching, pinching, or pulling when the monitor is repositioned. The result is a workspace that looks considered and tidy without any additional cable management hardware.
Specifications
| Parameter | Value |
|---|---|
| Monitor Size Range | 17″ – 49″ |
| Supported Weight — Flat Screen | 2 kg – 20 kg (4.4 – 44 lbs) |
| Supported Weight — Curved Screen | 2 kg – 20 kg (4.4 – 44 lbs) |
| VESA Compatibility | 100×100 / 75×75 mm |
| Material | Steel, Aluminum, Plastic |
| Colour | Black |
| Swivel | +90° (Right) and −90° (Left) |
| Tilt | +50° (Up) and −20° (Down) |
| Rotation | 360° |
| Arm Full Extension — Forward | 608 mm (24″) |
| Arm Full Extension — Height | 253 mm (9.96″) |
| Assembled Weight | — |
| Estimated Time to Assemble — Not Experienced | — |
| Estimated Time to Assemble — Experienced | — |
| Box Weight | 4.08 kg (9 lbs) |
| Box Dimensions | 116 × 567 × 443 mm (4.6″ × 22.3″ × 17.4″) |
| UNSPSC | 43212002 |
