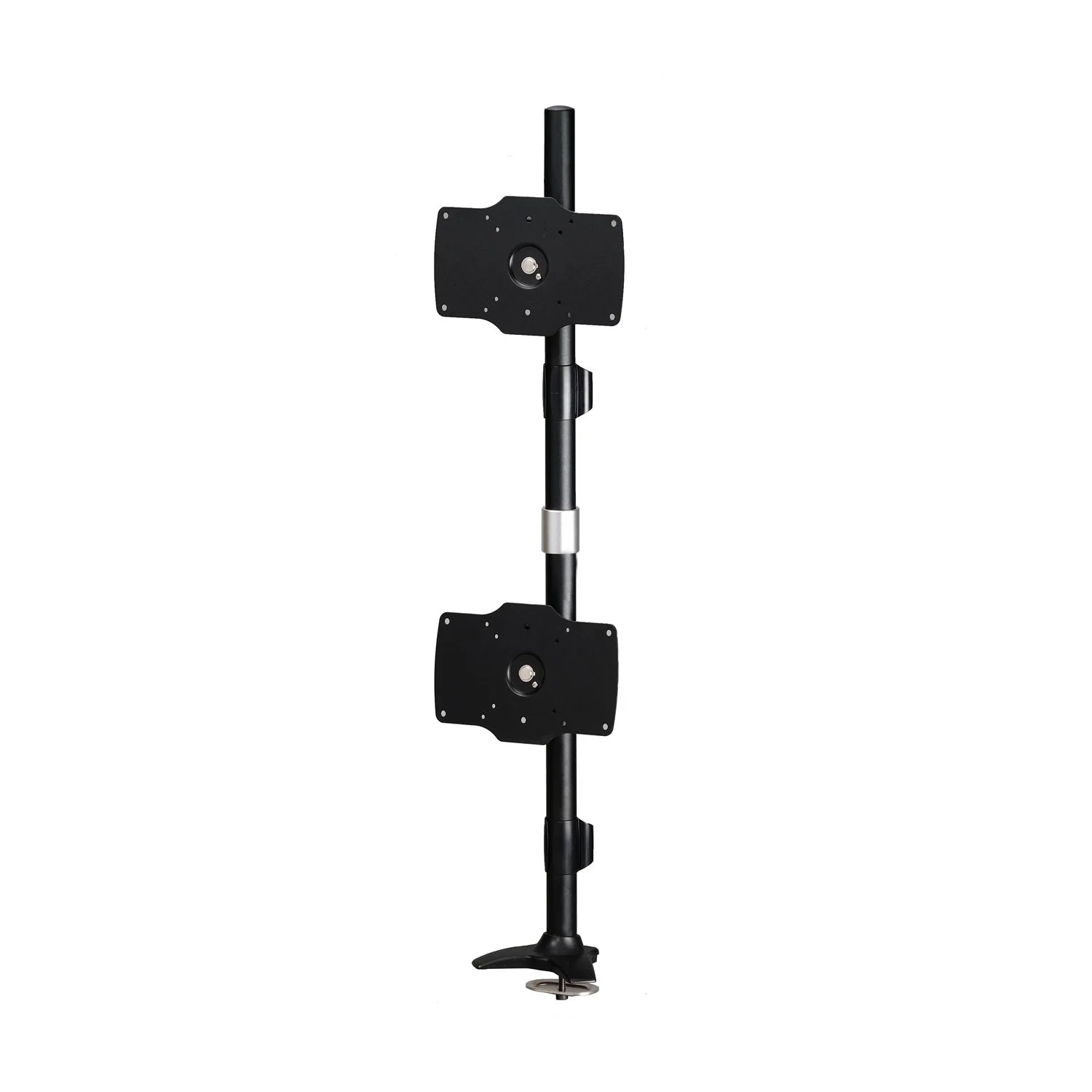

Dual Vertical Monitor Mount — Grommet Base
Overview
The AMR2P32V is a dual vertical monitor mount that stacks two displays on a shared pole, freeing up desk width without sacrificing screen space. The grommet base anchors the pole through an existing hole in the desktop, keeping the footprint minimal and the mount solidly secured. Each arm adjusts independently along the pole, so monitors can be positioned at the height that works best for your workflow. A built-in cable management column keeps cords tidy and out of the way. Compatible with flat and curved monitors up to 32″ and 12 kg per display.
Key Features
Feature Detail
Vertical Configuration
Mounting monitors vertically uses no more desk space than a single monitor, making it the practical choice for desks where width is limited or workspace real estate matters. Both arms attach to a shared pole, so the mount itself adds no additional footprint beyond that. It keeps both screens in your direct line of sight without requiring a wide surface — making it well suited for coding alongside documentation, referencing material while working in a primary application, or any workflow that benefits from two screens without placing them side by side.

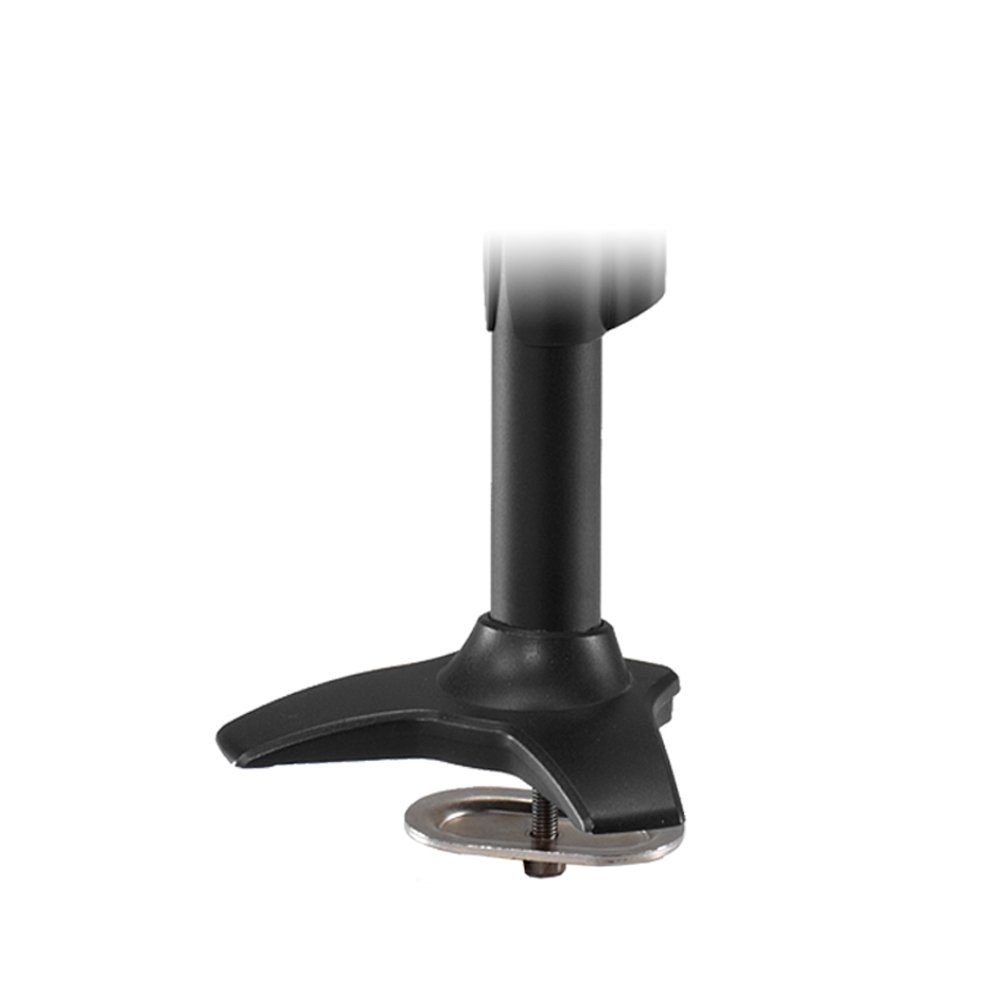

Grommet Base Installation
The grommet base anchors the pole through an existing hole in the desktop, giving the mount a stable, low-profile footprint without the side clearance a clamp base requires. Installation is straightforward — thread the pole through the grommet hole, secure the base beneath the desk, and the column is ready to hold both arms. This makes it a practical choice for desks where a clamp isn’t an option, whether due to a raised edge, limited depth, or a grommet hole already built into the surface. Once installed, the shared pole keeps both monitor arms aligned and stable, even at full height and reach.
Ergonomics
When a monitor is at the wrong height and below natural eye level it forces the head forward and down for hours at a time — a leading cause of neck and upper back strain in desk-based work. The mount raises the monitor to a comfortable viewing height and holds it there, encouraging a more upright posture throughout the day. Tilt adjustment lets you angle the screen to match your exact seated position and eliminate glare without shifting your chair. Small adjustments to monitor height and angle add up to a more comfortable workday.
Specifications
| Parameter | Value |
|---|---|
| Monitor Size Range | Up to 32″ |
| Supported Weight — Flat Screen | 12 kg (26.5 lbs) |
| Supported Weight — Curved Screen | 12 kg (26.5 lbs) |
| VESA Compatibility | 200×100 / 100×100 / 75×75 mm |
| Material | Steel / Aluminum Alloy / Plastic |
| Colour | Black |
| Swivel | 360° |
| Tilt | +15° (Up) and −15° (Down) |
| Rotation | 360° |
| Arm Full Extension — Forward | N/A |
| Arm Full Extension — Height | 890 mm (35.0″) |
| Assembled Weight | 3.25 kg (7.17 lbs) |
| Estimated Time to Assemble — Not Experienced | — |
| Estimated Time to Assemble — Experienced | — |
| Grommet Installation | |
| Compatible Surface Thickness | 8 – 50 mm (0.31″ – 1.97″) |
| Compatible Hole Dimensions | — |
| Box Weight | 4.17 kg (9.2 lbs) |
| Box Dimensions | 559 × 356 × 152 mm (22″ × 14″ × 6″) |
| UNSPSC | 43212002 |
Included in the Box
Warranty and Parts
Downloads
