Hex Monitor Clamp Mount
Overview
The AMR6C is a six-display clamp mount that attaches to the edge of your desk without drilling or desk modification. Each of the six display positions is independently adjustable through a precision hinge module, enabling tilt, swivel, and full 360° rotation per screen. The aluminum alloy construction supports up to 8 kg per arm and handles monitors up to 24″. VESA 75×75 and 100×100 mm compatible. A freestanding variant (AMR6S) and grommet mount variant (AMR6P) are also available.
Key Features
Feature Detail

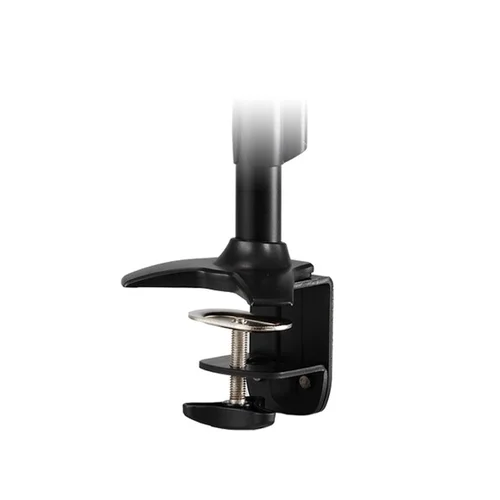

Clamp Mount
The clamp mount attaches to the edge of your desk without any drilling, grommet holes, or permanent modification to the surface. Installation is straightforward: the clamp slides over the desk edge and is secured with a tightening mechanism accessible from above, without needing to reach underneath. This makes it a practical choice for desks where grommet installation isn’t available, or for workspaces where the flexibility to reposition or remove the mount without leaving a trace matters. Compatible with a range of desk thicknesses to suit standard office and home office surfaces.
Ergonomics
When a monitor is at the wrong height and below natural eye level it forces the head forward and down for hours at a time — a leading cause of neck and upper back strain in desk-based work. The mount raises the monitor to a comfortable viewing height and holds it there, encouraging a more upright posture throughout the day. Tilt adjustment lets you angle the screen to match your exact seated position and eliminate glare without shifting your chair. Small adjustments to monitor height and angle add up to a more comfortable workday.
Full Articulation
Each display position delivers a broad range of motion to accommodate different workstyles and ergonomic needs. Swivel up to ±20° to share your screen or angle toward a second seat, tilt ±20° to eliminate glare from overhead lighting, and rotate a full 360° to switch between landscape and portrait orientation. Portrait mode is particularly useful for coding, reading long documents, or working in vertically-oriented applications. All adjustments are smooth and hold position firmly once set.
Specifications
| Parameter | Value |
|---|---|
| Monitor Size Range | 14″ – 24″ |
| Supported Weight — Flat Screen | Up to 8 kg (17.6 lbs) |
| Supported Weight — Curved Screen | Up to 8 kg (17.6 lbs) |
| VESA Compatibility | 100×100 / 75×75 mm |
| Material | Steel / Aluminum Alloy |
| Colour | Black |
| Swivel | +20° (Right) and −20° (Left) |
| Tilt | +20° (Up) and −20° (Down) |
| Rotation | 360° |
| Arm Full Extension — Forward | N/A |
| Arm Full Extension — Height | 705 mm (27.8″) |
| Assembled Weight | 6.6 kg (14.55 lbs) |
| Estimated Time to Assemble — Not Experienced | — |
| Estimated Time to Assemble — Experienced | — |
| Clamp Installation | |
| Compatible Surface Thickness | 8 – 65 mm |
| Clamp Width | — |
| Box Weight | 13.77 kg (30.35 lbs) |
| Box Dimensions | 1280 × 144 × 470 mm (50.4″ × 5.7″ × 18.5″) |
| UNSPSC | 43212002 |
Included in the Box
Warranty and Parts
Downloads
