Hex Monitor Grommet Mount

US$0.00

Model: AMR6P

Model: AMR6P

Hex Monitor Grommet Mount — AMR6P | Amer Mounts

The AMR6P is a six-display grommet mount that routes through an existing desk hole, eliminating the clamp profile entirely for a clean, low-profile installation. Each of the six display positions is independently adjustable through a precision hinge module, enabling tilt, swivel, and full 360° rotation per screen. The aluminum alloy construction supports up to 8 kg per arm and handles monitors up to 24″. VESA 75×75 and 100×100 mm compatible. A freestanding variant (AMR6S) and clamp mount variant (AMR6C) are also available.

01Supported Monitors: Up to 24″ and 8 kg (17.6 lbs) per arm
02Six Independent Display Positions — Full Hex Configuration
03Grommet Mount — Flush Installation Through Existing Desk Hole
04Precision Hinge Modules — Tilt, Swivel, and 360° Rotation Per Screen
05Aluminum Alloy Construction — Rigid and Stable Under Full Load

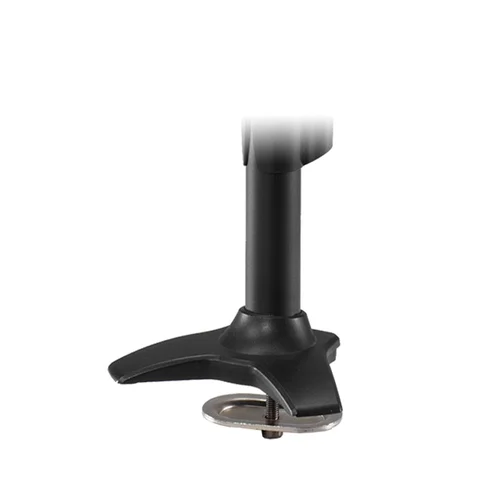

Grommet Installation

A grommet mount installs through a pre-drilled hole in your desk, eliminating the clamp profile entirely for a flush, low-profile installation. With no hardware visible above the desk surface beyond the pole itself, the result is a cleaner look that keeps attention on the monitors rather than the mount. Grommet installation is also more stable than a surface clamp, since the pole is anchored directly through the desk surface rather than gripping the edge. Most desks include a pre-drilled hole for cable management that works perfectly — and if not, one can be added with a standard drill.

AMR6P grommet installation

Full Articulation

Each display position delivers a broad range of motion to accommodate different workstyles and ergonomic needs. Swivel up to ±20° to share your screen or angle toward a second seat, tilt ±20° to eliminate glare from overhead lighting, and rotate a full 360° to switch between landscape and portrait orientation. Portrait mode is particularly useful for coding, reading long documents, or working in vertically-oriented applications. All adjustments are smooth and hold position firmly once set.

AMR6P full articulation

Ergonomics

When a monitor is at the wrong height and below natural eye level it forces the head forward and down for hours at a time — a leading cause of neck and upper back strain in desk-based work. The mount raises the monitor to a comfortable viewing height and holds it there, encouraging a more upright posture throughout the day. Tilt adjustment lets you angle the screen to match your exact seated position and eliminate glare without shifting your chair. Small adjustments to monitor height and angle add up to a more comfortable workday.

AMR6P ergonomics
ParameterValue
Monitor Size Range14″ – 24″
Supported Weight — Flat ScreenUp to 8 kg (17.6 lbs)
Supported Weight — Curved ScreenUp to 8 kg (17.6 lbs)
VESA Compatibility100×100 / 75×75 mm
MaterialSteel / Aluminum Alloy
ColourBlack
Swivel+20° (Right) and −20° (Left)
Tilt+20° (Up) and −20° (Down)
Rotation360°
Arm Full Extension — ForwardN/A
Arm Full Extension — Height705 mm (27.8″)
Assembled Weight6.6 kg (14.55 lbs)
Estimated Time to Assemble — Not Experienced
Estimated Time to Assemble — Experienced
Grommet Installation
Compatible Surface Thickness8 – 50 mm
Compatible Hole Dimensions
Box Weight11.14 kg (24.56 lbs)
Box Dimensions1280 × 144 × 470 mm (50.4″ × 5.7″ × 18.5″)
UNSPSC43212002
01Six-Display Arm Assembly
02Grommet Base
03Six VESA Mounting Brackets
04Hardware and Fasteners
05Installation Manual
Backed by Amer Mounts’ 3-year warranty.
Available directly from Amer Mounts in all regions where our products are sold.
When disposing of parts the metals and plastic used is recyclable in many regions.
